CRONO PORTABLE PUMPS
for thalassaemia treatment

The Canè Crono pump is the basis for a family of pumps designed to address a wide range of subcutaneous and intravenous drug administration therapies.

All pumps in the range have identical general characteristics, but specific program variants are available to meet particular therapeutic needs.
All models can use either a 10mL or 20mL syringe, with a new 30mL model available in the standard Crono configuration, and all are supplied with a range of carrying accessories for user convenience. The single battery cell has a typical life expectancy sufficient for 200-300 full syringe infusions.

Crono. Infusion pump for thalassaemia treatment

CRONO

Crono 30. Infusion pump for thalassaemia treatment

CRONO 30

Crono SC. Infusion pump for palliative treatment

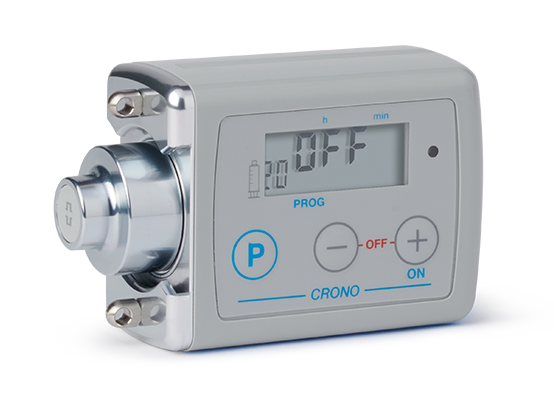

Canè Crono pump

The CRONO ambulatory infusion pump is designed for the subcutaneous infusion of drugs for ferrochelation therapy.
CRONO is a union of high technology and innovative design. Its reduced dimensions and weight make it ideal for home use, giving the patient the freedom to engage in everyday activities during the therapy.
CRONO uses 10 and 20 ml dedicated reservoirs. To improve the absorption of the drugs, CRONO administers 22 µl per shot.
The pusher mechanism, which operates directly on the rubber piston of the reservoir, enables the pump to combine high delivery pressure with excellent precision while administering the drugs.

An innovative infusion control system allows the pump to automatically restart and finish an infusion after an occlusion has been removed.
CRONO is provided with a liquid crystal display (LCD) which shows practical information to the doctor and patient about the settings, operations and diagnostics of the pump.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 76 x 49 x 29 mm (3.00 x 1.94 x 1.15 in).
  • Pump weight: 115 g (4.06 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 100 infusions).
  • Single-use reservoirs: Dedicated, (10 and 20 ml capacity) and a "Luer-Lock" universal safety attachment.
  • Partial volume: Selectable, from 1 to 10 ml in 1 ml increments (10 ml reservoir).
    Selectable, from 1 to 20 ml in 1 ml increments (20 ml reservoir).
  • Delivery time: Programmable from:
    • from 30 min to 1h in steps of 5 min (10 ml reservoir only).
    • from 1 h to 99 h in steps of 15 min (10 ml and 20 ml reservoir).
  • Available priming volume: 1.5 ml.
  • Flow rate precision: +/-2%.
  • Occlusion pressure: 6.0 bar +/-2.0.
  • Shot Volume: 22 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 1.5 ml.
  • Settings memory: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Anti free-flow system: To avoid a non controlled flow inside the delivery set due to the action of the force of gravity.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

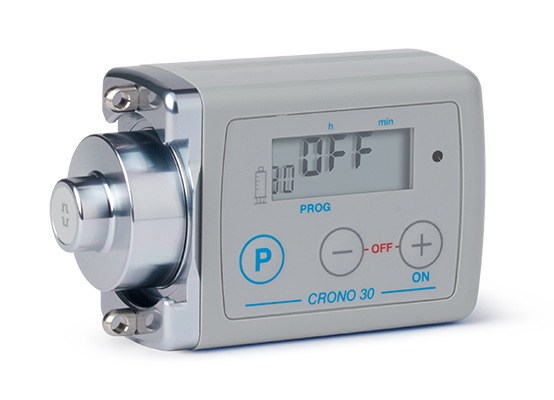

Canè Crono 30 pump

The Cane Crono 30 pump is a direct derivation of the standard Crono model with an enlarged syringe capacity. This model uses the specific Crono 30mL syringe, and is supplied with a range of carrying accessories for user convenience. The single battery cell has a typical life expectancy sufficient for 200-300 full syringe infusions.

REQUEST INFO TECHNICAL DATA SHEET
Crono 30. Infusion pump for palliative treatment

Technical Specifications

  • Pump dimensions: 80 x 47 x 30 mm (3.14 x 1.85 x 1.18 in).
  • Pump weight: 125 g (4.40 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 100 infusions).
  • Single-use reservoirs: Dedicated, with a 30 ml capacity and a “Luer-Lock” universal safety attachment.
  • Partial volume: From 1 to 30 ml in steps of 1 ml.
  • Delivery time: Programmable from: 1 h to 99 h in steps of 15 min.
  • Available priming volume: 1.5 ml.
  • Flow rate precision: +/-2%.
  • Occlusion pressure: 4,5 bar +/-2,0.
  • Shot Volume: 33 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 1.2 ml.
  • Settings memory: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (1,1 x 2,8 cm; 0,43 x 1,0 in).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Three configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.
