CRONO PAR 4-20 PORTABLE PUMP
for the treatment of Parkinson's disease

Crono PAR infusion pumps are used in order to treat Parkinson's disease with the active ingredient apomorphine, and feature dedicated 20, 30 and 50 ml syringes called réservoirs.

The reduced size and low weight of these infusion pumps makes them perfectly suitable for home use, allowing the patient the freedom to perform his or her daily activities during treatment.

The principle technical features of the pump are as follows:

  • the ability to select two different programming modes:
    • - one defined as FrEE, enabling the patient to choose one of the 3 available flows pre-set by the doctor during the day;
    • - the other defined as Auto, which uses a clock to manage a profile of flows pre-set by the doctor. Such flows vary automatically during the course of a 24-hour period.
  • the other defined as Auto, which uses a clock to manage a profile of flows pre-set by the doctor. Such flows vary automatically during the course of a 24-hour period.

The piston of the resevoir is acted on directly by the feed mechanism, enabling the pump to deliver the drug with precision.

The pump delivers shots of 20 µl at various intervals in accordance with the flow setting, thus allowing the drug to be better absorbed.

The time interval between shots decreases in proportion to the increase in the programmed flow.

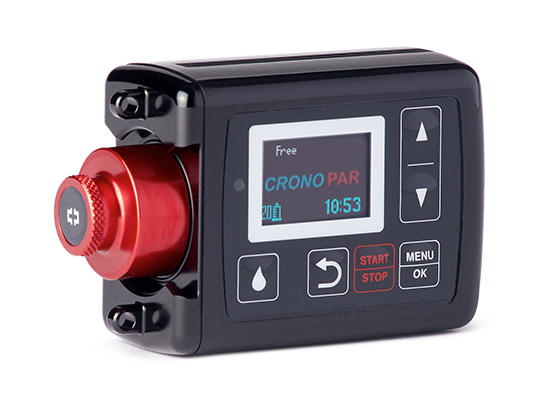

Crono PAR 4-20. Infusion pump for the treatment of Parkinson's disease

Canè Crono PAR 4-20 pump

CRONO PAR 4-20 is an ambulatory infusion pump, designed for the subcutaneous infusion of apomorphine in the treatment of Parkinson’s disease, which uses specific 10 ml and 20 ml syringes called reservoirs. Its small size and reduced weight make CRONO PAR4 20 ideal for home use, thus giving the patient the freedom to engage in everyday activities during the treatment.

CRONO PAR4 20 features a graphical OLED display for improved user interaction which shows practical information viewable by the healthcare personnel and the patient about the settings, operation and diagnostics of the pump.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 80 x 47 x 30 mm (3.14 x 1.85 x 1.18 in).
  • Pump weight: 127 g (4.46 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life approx. 100 infusions).
  • Single tank: Dedicated, with 10 and 20 ml capacity and "Luer-Lock" universal safety fitting.
  • Administrable volumes: Selectable, from 1 to 20 ml with 1 ml increments.
  • T mode: Total infusion time programmable from 20 mins to 500 hrs in the following way:
    • 20 min to 1 h with 5 min increments;
    • 1 to 20 h with 15 min increments.
  • F mode: Flow rate programmable from 0,5 ml/h to 300 ml/h in the following way:
    • 5 to 10 ml/h with 0,1 ml/h increments;
    • 10 to 300 ml/h with 1 ml/h increments.
  • FRC mode: FRC programmable parameters:
    • Number of flows 2 to 5
    • Interval 5 to 20 min with 5 min increments;
    • Flows:
    » 5 ml/h to 10 ml/h with 0,1 ml/h increments;
    » 10 ml/h to 300 ml/h with 1 ml/h increments.
  • Flow rate precision: +/-3%.
  • Maximum Occlusion pressure: 3,2 bar.
  • Post-occlusion bolus: Up to 4 ml.
  • Electronic circuit: Managed by twin microcontrollers for improved safety.
  • Storage: All selected values are automatically stored in a memory which is retained even if the battery is removed from the device.
  • Display: Colour graphical OLED display, 96x64 pixels.
  • Motor: Coreless DC motor. The microcontroller controls the rotation speed using an infrared encoder.
  • Keypad lock: Two configurable levels.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Pump degree of protection: IP 42.
  • Features: Ambulatory infusion pump with reservoir, infusion pump carry-case, elastic belt, collar strap, fabric case, 2 batteries, battery cover opening tool and user guide.
  • Warranty: Two years for manufacturing defects.

Accessories

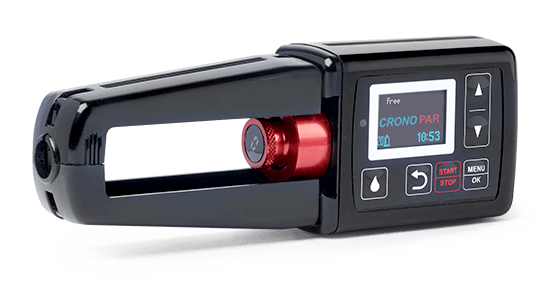

Crono PAR 4-20 infusion pump with closed wings
Crono Par 4-20 with closed wings

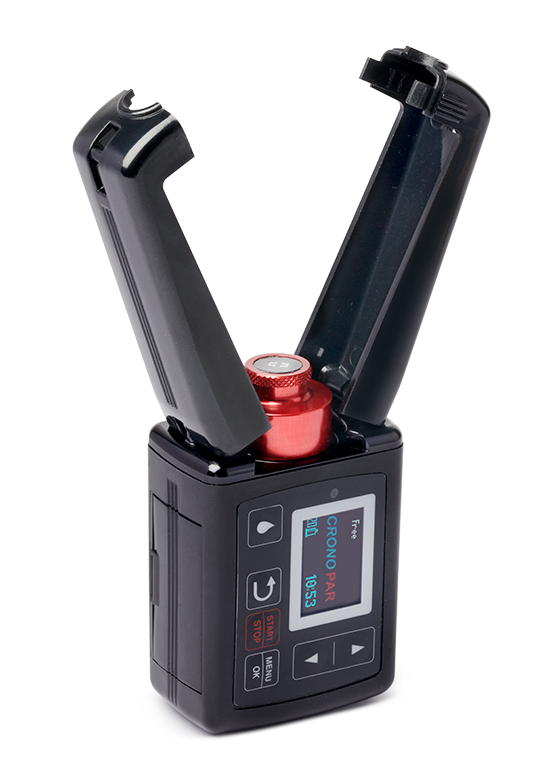

Crono PAR 4-20 infusion pump with open wings
Crono Par 4-20 with open wings

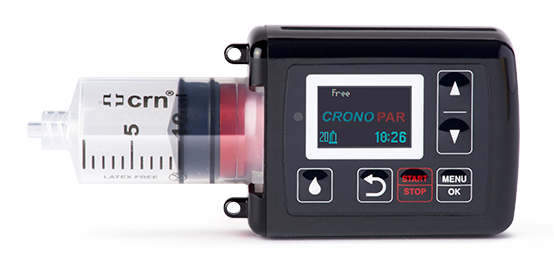

Crono PAR 4-20 infusion pump with syringe 10ml
Crono PAR 4-20 infusion pump with syringe 10ml

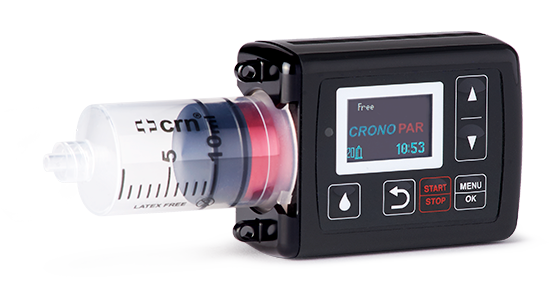

Crono PAR 4-20 infusion pump with syringe 20ml
Crono PAR 4-20 infusion pump with syringe 20ml

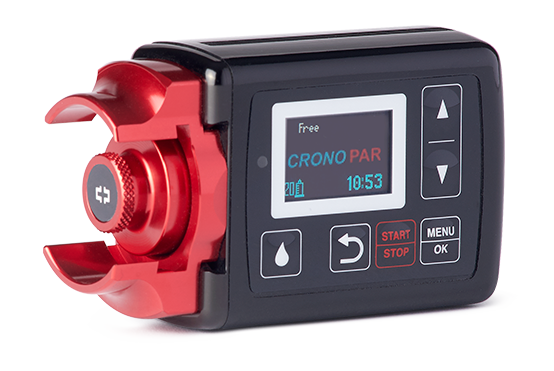

Crono PAR 4-20 infusion pump with Crono Bell Adapter
Crono PAR 4-20 infusion pump with Crono Bell Adapter

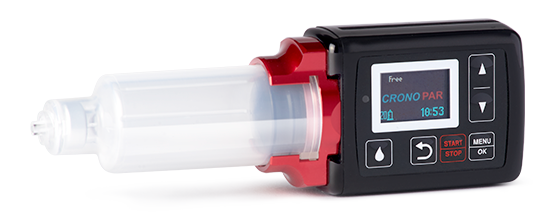

Crono PAR 4-20 infusion pump with 20ml syringe and Crono Bell Adapter
Crono PAR 4-20 infusion pump with 20ml syringe and Crono Bell Adapter
