CRONO S-PID PORTABLE PUMPS
for the treatment of primary immunodeficiencies

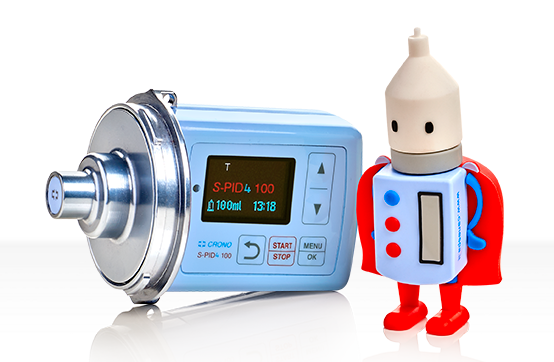

Crono S-PID superhero. Infusion pump for the treatment of primary immunodeficiencies

Infusion pumps CRONO S-PID are portable syringe pumps intended for subcutaneous administration of immunoglobulins.

The infusion pumps CRONO S-PID are a synthesis of high technology and innovative design.
Their small size and light weight make them ideal for use at home, giving the patient the freedom to carry out everyday and leisure activities during the infusion.

The main technical features of the CRONO S-PID pump are:

  • - the possibility of selecting the programming mode in time or flow;
  • - the feed mechanism, which acts directly on the rubber piston of the reservoir, allows the pump to achieve a high thrust force combined with excellent precision in drug delivery.

The CRONO S-PID are equipped with a liquid crystal display that shows information useful to the doctor and patient regarding programming, operation and diagnostics of the pump.

Crono S-PID. Infusion pump for the treatment of primary immunodeficiencies

CRONO S-PID

Crono S-PID 30. Infusion pump for the treatment of primary immunodeficiencies

CRONO S-PID 30

Crono S-PID 50. Infusion pump for the treatment of primary immunodeficiencies

CRONO S-PID 50

Crono S-PID 100. Infusion pump for the treatment of primary immunodeficiencies

CRONO S-PID 100

Crono SUPER PID. Infusion pump for the treatment of primary immunodeficiencies

CRONO SUPER PID

Crono S-PID4 100. Infusion pump for the treatment of primary immunodeficiencies

CRONO S-PID4 100

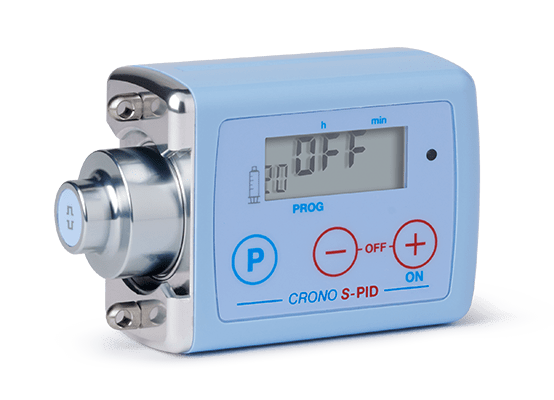

Crono S-PID. Infusion pump for the treatment of primary immunodeficiencies

Canè Crono S-PID pump

The CRONO S-PID ambulatory pump is designed for the subcutaneous infusion of immunoglobulins and drugs in general. CRONO S-PID is a union of high technology and innovative design. Its reduced dimensions and weight make it ideal for home use, giving the patient the freedom to engage in everyday activities during the therapy.

CRONO S-PID uses 10 and 20 ml dedicated reservoirs.
To improve the absorption of the drugs, CRONO S-PID administers 22 µl per shot.
The pusher mechanism, which operates directly on the rubber piston of the reservoir, enables the pump to combine high delivery pressure with excellent precision while administering the drugs.

An innovative infusion control system allows the pump to automatically restart and finish an infusion after an occlusion has been removed.

CRONO S-PID is provided with a liquid crystal display (LCD) which shows practical information to the doctor and patient about the settings, operations and diagnostics of the pump.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • REF: CRONO S-PID V2.
  • GTIN: 08050616613042.
  • Classification: Class IIb medical device, according to Rule 11 of Annex IX of the 93/42/EEC European Directive and subsequent changes introduced by the 2007/47/EC European Directive.
  • Italian Device Repertory Registration: Z1204021699.
  • Pump dimensions: 76 x 49 x 29 mm (3.00 x 1.94 x 1.15 in).
  • Pump weight: 115 g (4.06 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 100 infusions).
  • Single-use reservoirs: Dedicated, with a 10 and 20 ml capacity and a “Luer-Lock” universal safety attachment.
  • Partial volume: Selectable, from 1 to 10 ml in 1 ml increments (10 ml reservoir).
    Selectable, from 1 to 20 ml in 1 ml increments (20 ml reservoir).
  • Delivery time: Selectable from:
    • from 1 to 10 ml in 1 ml increments (10 ml reservoir).
    • from 1 to 20 ml in 1 ml increments (20 ml reservoir).
  • Flow rate: Programmable from: 0.20 ml/h. to 40.00 ml/h.
  • Available priming volume: 1.5 ml.
  • Flow rate precision: +/-2%.
  • Occlusion pressure: 6.0 bar +/-2.0.
  • Shot Volume: 22 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 1.2 ml.
  • Memory settings: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (1.1 x 2.8 cm; 0.43 x 1.0 in).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Ingress protection rating: IP 42.

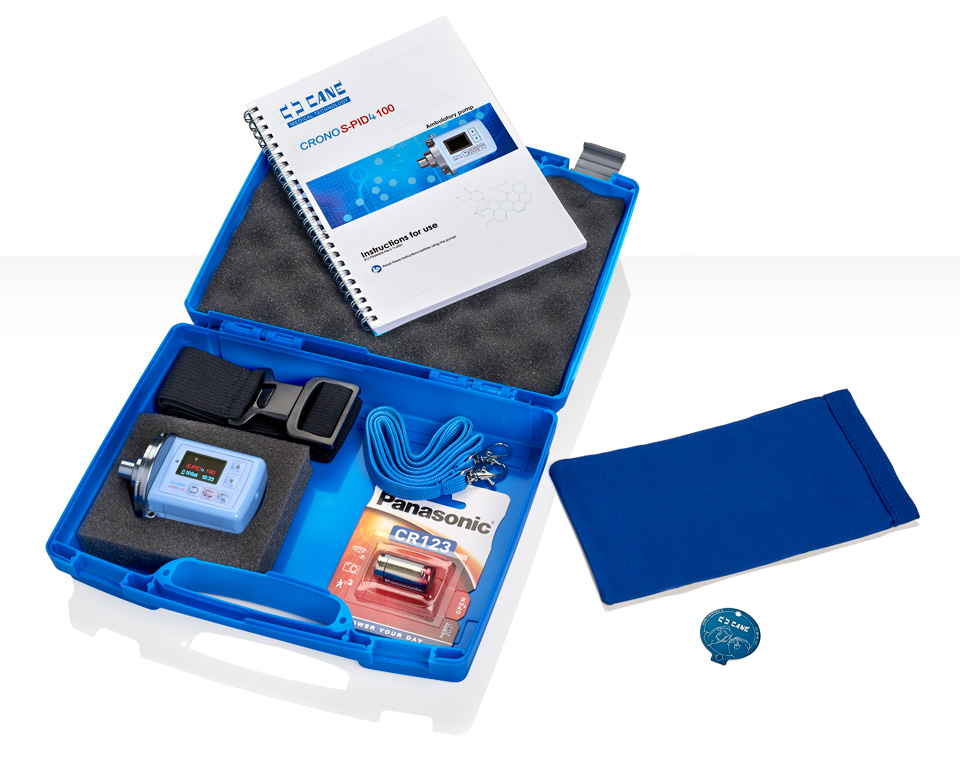

  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

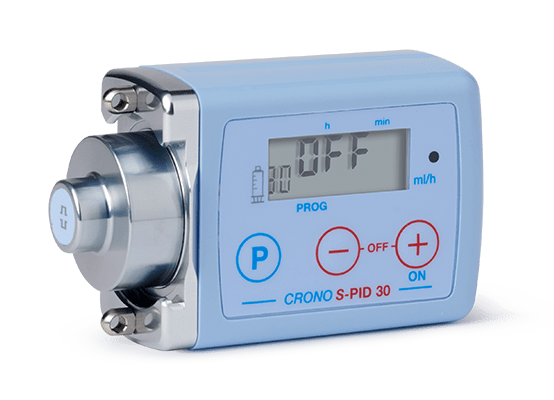

Crono S-PID 30. Infusion pump for the treatment of primary immunodeficiencies

Canè Crono S-PID 30 pump

The CRONO S-PID 30 pump is a higher volume derivation of the Super PID model with some additional programming features. This model uses the Crono 30mL syringe reservoir, and is supplied with a range of carrying accessories for user convenience. The single battery cell has a typical life expectancy sufficient for approximately 70 full syringe infusions.

In particular these pumps have increased flow rate facilities and a higher level of pumping pressure to manage the requirements for the administration of more viscous fluids such as Immunoglobulin.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 80 x 47 x 30 mm (3.14 x 1.85 x 1.18 in).
  • Pump weight: 125 g, including battery.
  • Battery: Lithium CR 123A 3V (battery life about 100 infusions).
  • Single-use reservoirs: Dedicated, with a 30 ml capacity and a “Luer-Lock” universal safety attachment.
  • Quantities that can be administered: Selectable from 1 to 30 ml in 1 ml increments.
  • Time mode (delivery time): Selectable, from 25 m. to 300 h.
  • Flow rate: Selectable, from 0.1 ml/h to 75 ml/h.
  • Available priming volume: 1.5 ml.
  • Flow rate precision: +/-3%.
  • Occlusion pressure: 4.5 bar +/-2.0.
  • Single shot volume: 33 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 1.2 ml.
  • Memory settings: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (dimensions: 0.43 x 1.0 in; 11 x 28 mm).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Pump's protection rating: IP 42.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

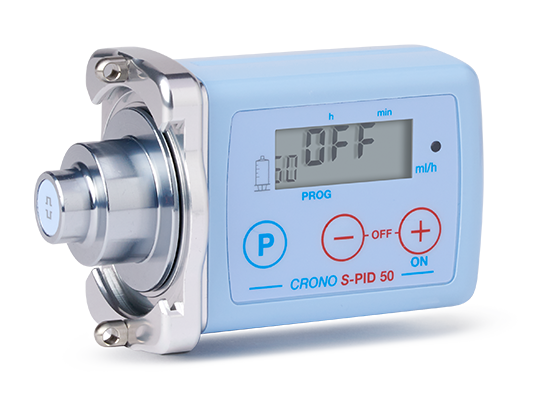

Crono S-PID 50. Infusion pump for the treatment of primary immunodeficiencies

Canè Crono S-PID 50 pump

The CRONO S-PID 50 pump is a higher volume derivation of the Super PID model with some additional programming features. This model uses the Crono 50mL syringe reservoir, and is supplied with a range of carrying accessories for user convenience. The single battery cell has a typical life expectancy sufficient for approximately 70 full syringe infusions.

In particular these pumps have increased flow rate facilities and a higher level of pumping pressure to manage the requirements for the administration of more viscous fluids such as Immunoglobulin.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 84 x 55 x 42 mm (3.31 x 2.17 x 1.65 in).
  • Pump weight: 139 g (4.47 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 100 infusions).
  • Single-use reservoirs: Dedicated, with a 50 ml capacity and a “Luer-Lock” universal safety attachment.
  • Quantities that can be administered: Selectable from 1 to 50 ml in 1 ml increments.
  • Time mode (delivery time): Selectable, from 30 m. to 500 h.
  • Flow rate: Selectable, from 0.1 ml/h to 100 ml/h.
  • Setting of the number of infusion sites (only in Flow rate Mode): Selectable from 1 to 5 sites.
  • Available priming volume: 1.5 ml.
  • Flow rate precision: +/-3%.
  • Occlusion pressure: 3.0 bar +/-1.5.
  • Single shot volume: 20 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 1.8 ml.
  • Memory settings: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (dimensions: 0.43 x 1.0 in; 11 x 28 mm).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Pump's protection rating: IP 42.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

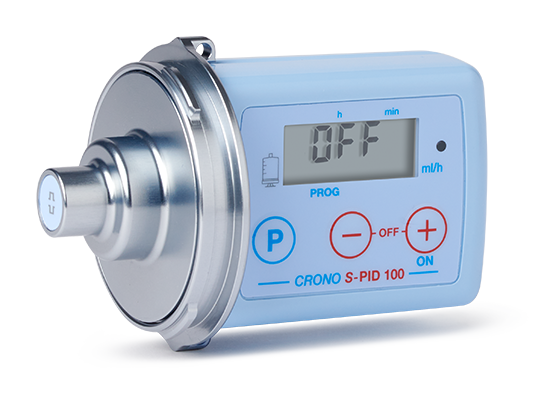

Crono S-PID 100. Infusion pump for the treatment of primary immunodeficiencies

Canè Crono S-PID 100 pump

The CRONO S-PID 100 pump is a higher volume derivation of the Super PID model with some additional programming features. This model uses the Crono 100mL syringe reservoir, and is supplied with a range of carrying accessories for user convenience. The single battery cell has a typical life expectancy sufficient for approximately 60 to 80 full syringe infusions.

In particular these pumps have increased flow rate facilities and a higher level of pumping pressure to manage the requirements for the administration of more viscous fluids such as Immunoglobulin.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 88 x 59 x 56 mm (3.46 x 2.31 x 2.20 in).
  • Pump weight: 140 g (4.50 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 60/80 infusions).
  • Single-use reservoirs: Dedicated with a 100 ml capacity and a “Luer-Lock” universal safety attachment.
  • Quantities that can be administered: Selectable from 1 to 100 ml in 1 ml increments.
  • Time mode (delivery time): Selectable from 20' to 500 h.
  • Flow rate: Selectable from 0.2 ml/h to 300 ml/h.
  • Setting of the number of infusion sites (only in Flow rate Mode): Selectable from 1 to 5 sites.
  • Available priming volume: 3.0 ml.
  • Flow rate precision: +/-3%.
  • Occlusion pressure: 2.2 bar +/-1.
  • Single shot volume: 20 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 4.0 ml.
  • Memory settings: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (dimensions: 0.43 x 1.0 in; 11 x 28 mm).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Pump's protection rating: IP 42.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

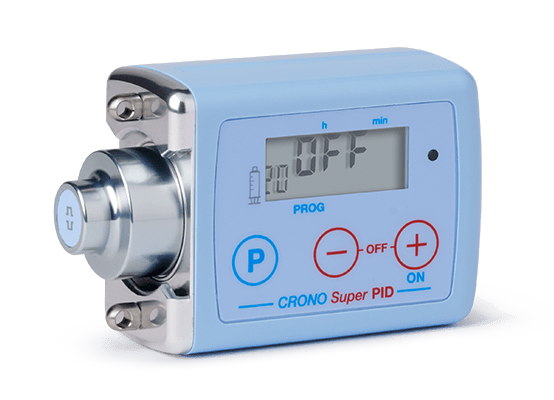

Crono SUPER PID. Infusion pump for the treatment of primary immunodeficiencies

Canè Crono SUPER PID pump

The CRONO SUPER PID pump, based on the well-established range of pumps from Canè, has been specially developed to meet the specific requirements for the treatment of Primary Immunodeficiency. This model can use either a 10mL or 20mL syringe reservoir, and is supplied with a range of carrying accessories for user convenience. The single battery cell has a typical life expectancy sufficient for approximately 70 full syringe infusions.

In particular these pumps have increased flow rate facilities and a higher level of pumping pressure to manage the requirements for the administration of more viscous fluids such as Immunoglobulin.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 76 x 49 x 29 mm (3.00 x 1.94 x 1.15 in).
  • Pump weight: 115 g (4.06 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 100 infusions).
  • Single-use reservoirs: Dedicated with a 10 and 20 ml capacity and a “Luer-Lock” universal safety attachment.
  • Quantities that can be administered: Selectable from:
    from 1 to 10 ml in 1 ml increments (10 ml reservoir).
    from 1 to 20 ml in 1 ml increments (20 ml reservoir).
  • Duration of infusion: Programmable from 15 min to 99 h (10 ml reservoir)br • 30 min to 99 h (20 ml reservoir)
  • Available priming volume: 1.5 ml.
  • Flow rate precision: +/-2%.
  • Occlusion pressure: 6.0 bar +/-2.
  • Single shot volume: 22 microlitres (shot: quantity administered for every rotation of the motor).
  • Post-occlusion bolus: About 1.2 ml.
  • Memory settings: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (dimensions: 0.43 x 1.0 in; 11 x 28 mm).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Pump's protection rating: IP 42.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

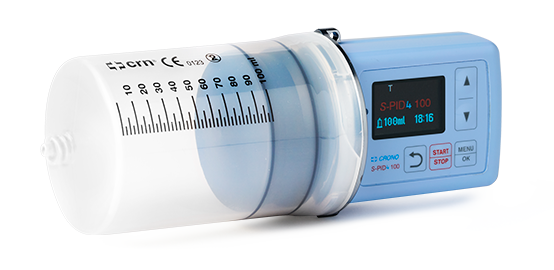

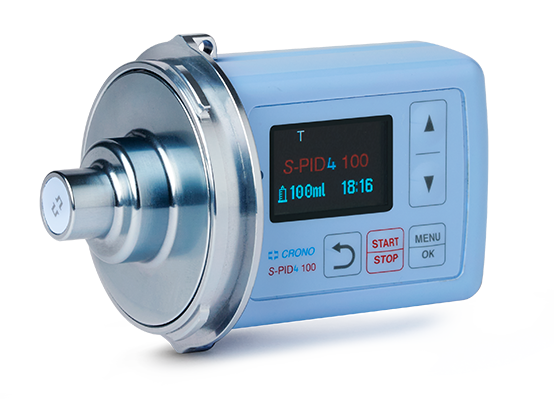

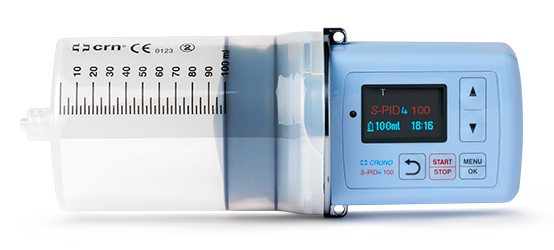

Crono S-PID4 100. Infusion pump for the treatment of primary immunodeficiencies

Canè Crono S-PID4 100 pump

The CRONO S-PID4 100 is an ambulatory pump, designed for the subcutaneous administration of immunoglobulins, which uses specific 100 ml syringes called réservoirs. Its small size and reduced weight make CRONO S-PID4 100 ideal for home use, thus giving the patient the freedom to engage in everyday activities during the treatment.

Main technical features of the pump:

  • The possibility of choosing from three modes:
    • Time Mode (T), allows.you to set the infusion duration for the therapy
    • Flow Rate Mode (F), allows you to set the infusion flow rate to be used during the therapy
    • Flow Rate Cycle Mode (FRC), allows you to set a ramp composed of several flows that vary at predetermined time intervals

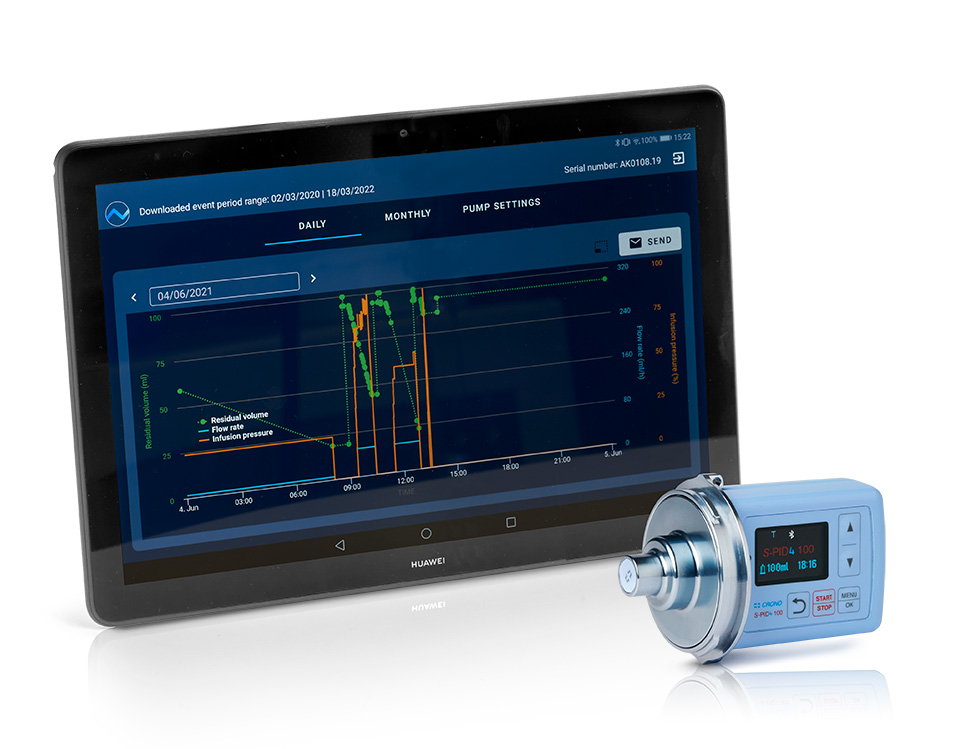

  • Bluetooth interface for communication with CronoManagementTouch

The pusher mechanism acts directly on the plunger of the reservoir, allowing for an accurate administration of the drug. The pump administers shots of 20 µl, at intervals which depend on the chosen flow rate. If the programmed flow rate is increased, the time interval between the shots decreases proportionally.

CRONO S-PID4 100 features a graphical OLED display for improved user interaction which shows practical information viewable by the healthcare personnel and the patient about the settings, operation and diagnostics of the pump.

REQUEST INFO TECHNICAL DATA SHEET

Technical Specifications

  • Pump dimensions: 88 x 59 x 56 mm (3.46 x 2.31 x 2.20 in).
  • Pump weight: 140 g (4.50 oz.), including battery.
  • Battery: Lithium CR 123A 3V (battery life about 60/80 infusions).
  • Single-use reservoirs: Dedicated with a 100 ml capacity and a “Luer-Lock” universal safety attachment.
  • T mode:
    Total infusion time programmable from 20 mins to 20 hrs in the following way:
    20 min to 1 h with 5 min increments;
    1 to 20 h with 15 min increments.
  • F mode:
    Flow rate programmable from 0,5 ml/h to 300 ml/h in the following way:
    5 to 10 ml/h with 0,1 ml/h increments;
    10 to 300 ml/h with 1 ml/h increments.
  • FRC mode:
    FRC programmable parameters:
    • Number of flows 2 to 5
    • Interval 5 to 20 min with 5 min increments;
    • Flows:
    » 5 ml/h to 10 ml/h with 0,1 ml/h increments;
    » 10 ml/h to 300 ml/h with 1 ml/h increments.
  • Flow rate precision: +/-3%.
  • Occlusion pressure: 3.2 bar.
  • Post-occlusion bolus: About 4.0 ml.
  • Memory settings: All settings are automatically stored in a flash memory which is retained even if the device is left without a battery.
  • Display: Liquid crystal display (LCD) (dimensions: 0.43 x 1.0 in; 11 x 28 mm).
  • Motor: Coreless DC motor, the rotation of which is controlled by an infrared system.
  • Settings lock: Two configurable levels.
  • Electronic circuit with twin microcontrollers: Ensures a more reliable and safer infusion system.
  • Safety circuits: These check that the device is functioning correctly, intervening in the event of any anomaly with sounds and messages on the display.
  • Ingress protection rating of the pump: IP 42.
  • Supplied standard equipment: Ambulatory infusion pump, carry case, elastic belt, collar strap, fabric case, 2 batteries, battery-cover opening tool, user manual.
  • Guarantee: Two years for manufacturing defects.

Accessories

Crono S-PID4 100 infusion pump with 100ml syringe
Crono S-PID4 100 infusion pump with 100ml syringe
Crono S-PID4 100 infusion pump's case
Crono S-PID4 100 infusion pump's case
Crono S-PID family
Crono S-PID family
Crono S-PID4 100 tablet
Crono S-PID4 100 tablet
Crono S-PID4 100 with 100ml syringe
Crono S-PID4 100 with 100ml syringe
